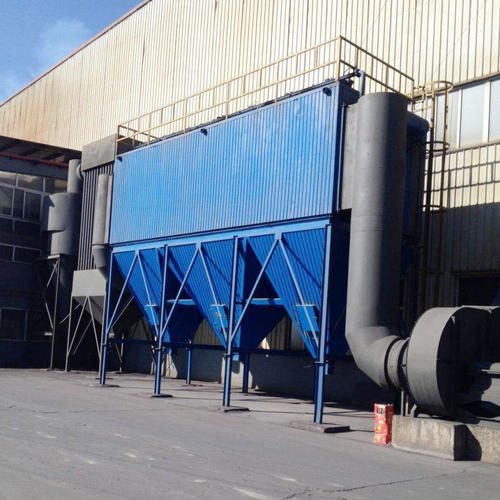

The gas box pulse bag dust collector produced by our company: 1. Can handle dust below 100g/Nm3. 2. The sealing measures have an air leakage coefficient of less than 2%. 3. The structural design has a large filtration area per unit volume and a small equipment volume. 4. Dust cleaning method extends the service life of filter bags. 5. Key parts have a long service life. 6. Stable performance, high degree of automation, and simple daily maintenance and management.
The structural components of the pneumatic pulse bag filter are as follows:
(1) Shell part: including clean room (or gas purification box), filtration room, partition board, maintenance door, and shell structure. The cleaning room is equipped with a lift valve and a flower board, and a short spray pipe. The filtering room is equipped with a filter bag and its framework.
(2) Ash hopper and ash unloading mechanism: The ash hopper can be equipped with screw conveyors, air conveying chutes, and rigid impeller unloaders (ash discharge valves) according to different series and dust concentrations.
(3) Inlet and outlet air box body: including inlet and outlet air ducts and middle partition. The single row (or single row) structure is arranged on one side of the shell, and the double row (or double row) structure is arranged in the middle of the shell: the 32 series is smaller without a box, and the inlet and outlet air ducts are respectively connected to the ash hopper and the cleaning room.
(4) Pulse dust cleaning device: including pulse valve, air bag, lifting valve cylinder and its solenoid valve, etc.
(5) Compressed air pipeline and pressure reducing device, oil-water separator, oil mist device, etc.
(6) Pillars, vertical cage ladders, and railings. The dust collection systems for crushing, packaging, warehouse roof, clinker cooling machine, and various grinding machines in the factory are also used for dust collection of exhaust gases from metallurgy, chemical industry, machinery, and civil boilers.
Welcome to choose our company's pneumatic pulse bag dust collector. We look forward to hearing from you.
