Pulse valve is a compressed air switch of the pulse dust collector cleaning and blowing system. It is controlled by the output signal of the pulse blowing control instrument to blow and clean the filter bag (chamber), keeping the negative force of the dust collector within the set range. With the processing capacity and dust collection efficiency of the dust collector, the right angle pulse valve is a right angle valve with an inlet and outlet angle of 90 degrees, suitable for the installation and connection of the air bag and the dust collector blowing pipe, and can provide the required cleaning gas pulse.
According to the angle of the valve inlet and outlet and the form of the inlet, it can be divided into three types: A right angle electromagnetic pulse valve. The valve body inlet and outlet form a right angle, and the diaphragm valve is directly controlled by electrical signals; B straight through pulse valve; A membrane valve with a valve body inlet and outlet angle of 180 degrees, directly controlled by electrical signals; C submerged electromagnetic pulse valve; The intake port of the valve body is submerged in the air bag and is directly controlled by electrical signals. The working principle of the right angle pulse valve is that the diaphragm divides the electromagnetic pulse valve into two air chambers, front and rear. When compressed air is connected, the compressed air enters the rear chamber through the throttle hole. At this time, the pressure in the rear chamber presses the diaphragm tightly against the output port of the valve, and the electromagnetic pulse valve is in the closed state. The pulse valve controller presses the diaphragm backwards, and compressed air is sprayed through the valve output port. The pulse is in the open closed state. The electrical signal of the pulse spraying controller disappears, and the electromagnetic pulse valve armature resets. The exhaust hole in the rear chamber is closed, and the pressure in the rear chamber increases, causing the diaphragm to tightly adhere to the valve in the closed state. The function of the pulse valve on the bag filter: The dusty gas enters the middle and lower boxes through the inlet of the dust collector. During the process of entering the upper box through the filter bag, the dusty gas is separated by various effects of the filter bag, and the dust is adsorbed on the filter bag. The gas passes through the filter bag and enters the upper box through the Venturi tube, and is discharged from the outlet. The purification process of dusty gas passing through the filter bag results in an increasing amount of dust accumulating on the filter bag over time, which increases the resistance of the filter bag and gradually reduces the amount of gas passing through it.

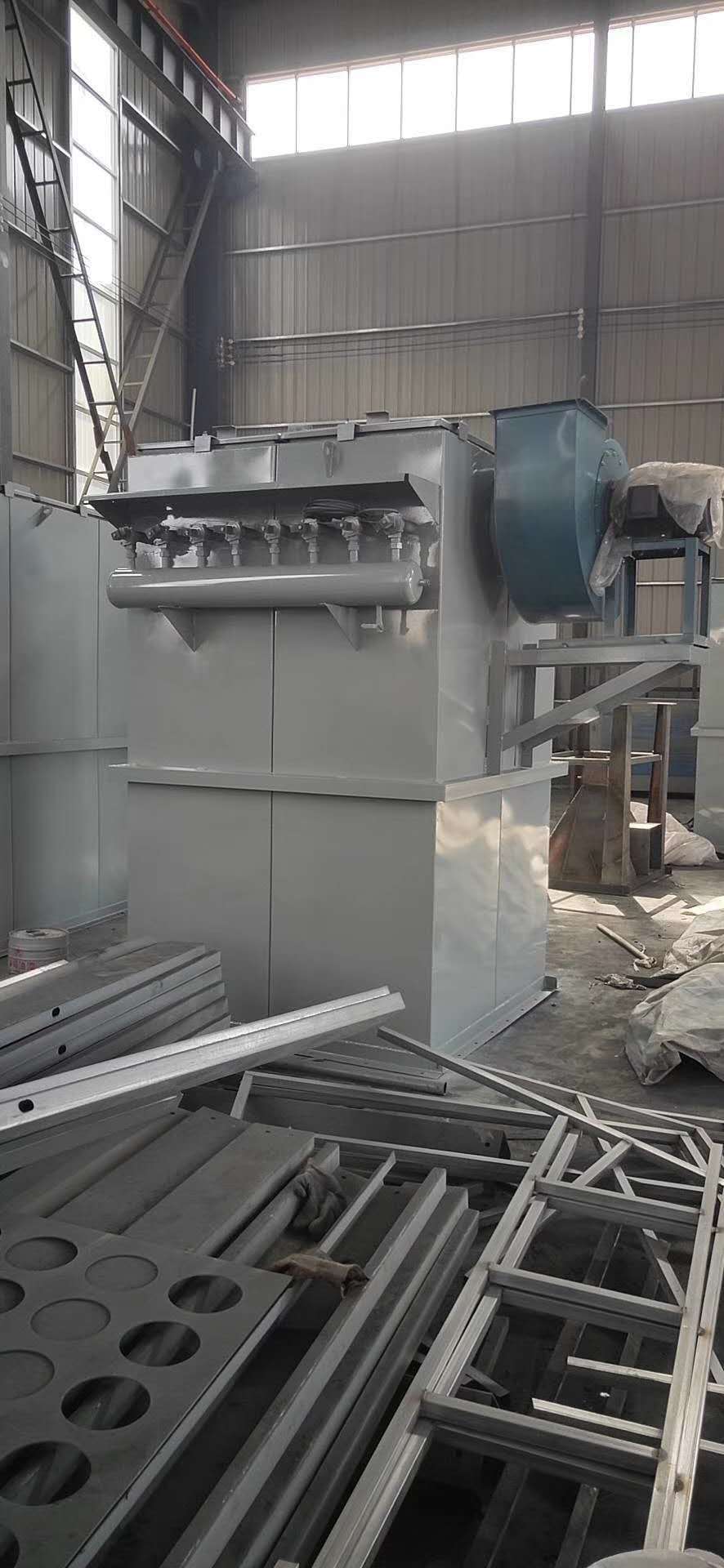

这是我公司生产的脉冲布袋除尘器产品图。
