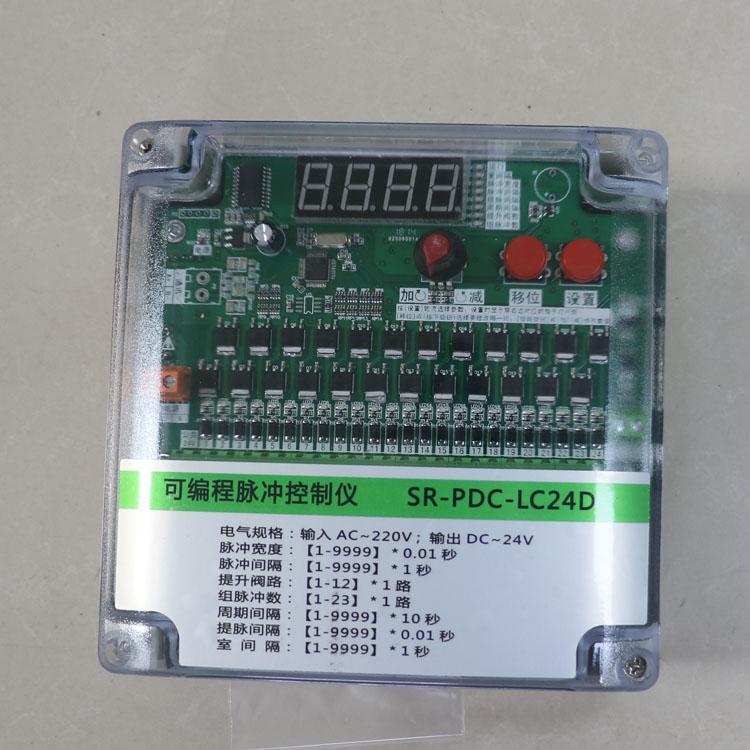

The MKY pulse controller emits pulse signals to control pneumatic valves or solenoid valves, causing the pulse valves to spray light ash. The pulse signal generator is the main control device of the pulse bag filter, which uses a mechanical transmission device to directly trigger the pulse valves one by one for spraying.
Precautions for using MKY pulse controller:
1. Input voltage: 220V
2. Output voltage: AC110V/DC24V/AC220V Operating temperature: Temperature -20 ℃~50 ℃
3. Air temperature: ≤ 85%
4. The working environment is free of severe corrosive gases and conductive dust, and there is no severe vibration or impact
Technical specifications of MKY pulse controller:
1. Pulse width: 0.05-0.2 seconds 2. Pulse interval: 1-99 seconds
3. Cycle time: 0-250 minutes 4. Operating voltage: 220VAC-50HZ
5. Output current: 900mmA 6. Output voltage: 24V, 110V, 220V optional
7. Environmental temperature:- 20℃< 45 ℃ 8. Environmental humidity:& gt;20%&& lt;80%。
