A filter cartridge dust collector is a dust collector that uses a filter cartridge as the filtering material. Its principle is the same as that of a bag filter, except that a filter cartridge is used instead of a filter bag. Therefore, the installation method of a filter cartridge dust collector can be diversified, including inclined insertion, side installation, lifting, and top installation. Similarly, filter cartridge dust collectors are also diversified according to filter cartridge materials, including long fiber polyester filter cartridge dust collectors, composite fiber filter cartridge dust collectors, flame retardant filter cartridge dust collectors, membrane filter cartridge dust collectors, nano filter cartridge dust collectors, etc.
The characteristics of the filter cartridge dust collector are as follows:
① Due to the pleated cylindrical use of the filter material, the density of the filter material arrangement is high, resulting in a compact structure and small volume of the dust collector;
Filter cartridge dust collector
② The height of the filter cartridge is small, easy to install, and the maintenance workload is small;
③ The filtering area of the same volume dust collector is relatively large, the filtering wind speed is small, and the resistance is not high;
④ The folding of filter material requires strict sealing at both ends, without any air leakage, otherwise it will reduce the effectiveness.
The characteristics of the pulse filter cartridge dust collector are as follows:
1. The filter cartridge uses polyester fiber as the filter material, which adheres a layer of sub micron ultra-thin fibers to the general filter material. The arrangement of fibers on this adhesion layer is very tight, and the small sieve holes can block most of the sub micron dust particles on the surface of the filter material.
;2. Use pleated filter material and make the dust collector structure compact;
3. The height of the filter cartridge is small, and the installation and maintenance workload is small;
4. Compared with dust collectors of the same volume, the filtration area is relatively large, the filtration air speed is small, and the resistance is not high;
5. The single machine dust collector adopts pulse jet online dust cleaning method. The dust cleaning process is automatically controlled by a pulse controller. Multiple filter cartridges are installed inside the dust collector to increase its filtering area. When one (pair) of filter cartridges meets the requirements for dust cleaning, the spraying device is activated for dust cleaning, and the other filter cartridges work normally. This achieves the dust cleaning effect without affecting the operation of the equipment, allowing the dust collector to operate continuously; The combined dust collector adopts offline pulse automatic circulation cleaning in separate rooms for dust cleaning.
Multiple filter cartridges are installed in each dust removal chamber to increase its filtering area. When a filter cartridge in a certain dust removal chamber meets the requirements for dust cleaning, the spraying device is activated for dust cleaning, and other dust removal chambers work normally. This not only maintains the dust cleaning effect but also allows the dust collector to operate continuously.

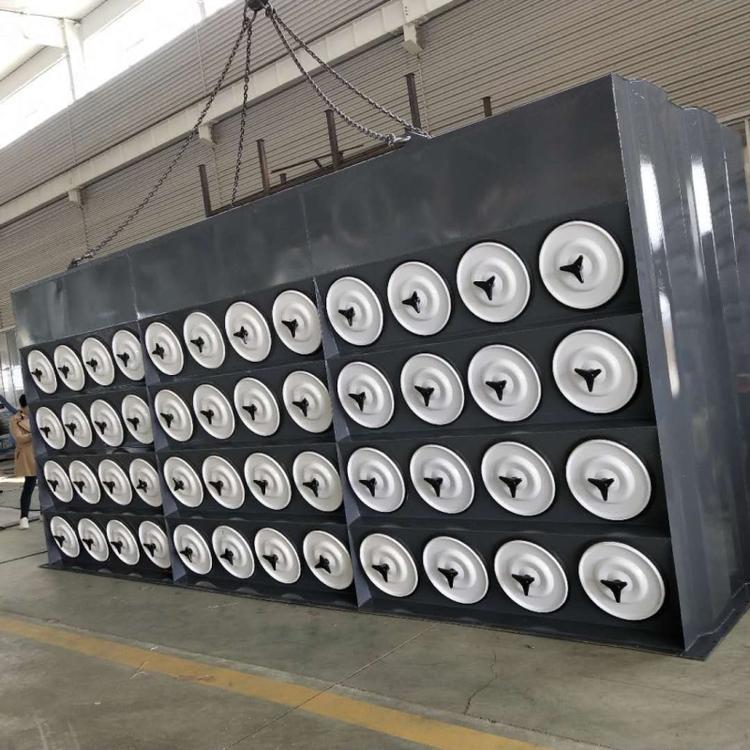

这是我们公司生产的侧装滤筒除尘器设备。
