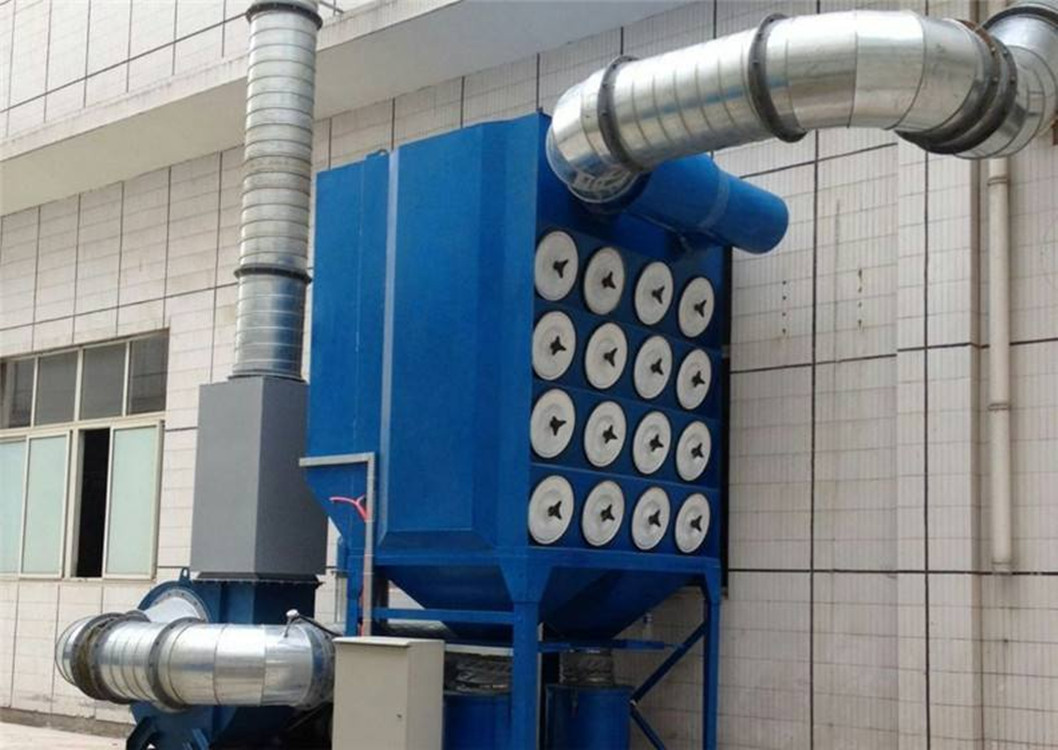

The plasma cutting machine filter cartridge dust collector is not only applicable in multi station welding or polishing workshops, but also in welding training institutions, robot production lines, plasma cutting machines, and laser cutting and cutting production lines.
The dust collector of the plasma cutting machine adopts a filter cartridge as the core filtering unit, and uses an electromagnetic pulse valve to open and close, controlling the compressed air blowing and cleaning operation of the dust collector. The dust removal method is physical interception and filtration. Simply put, it is better to use a sieve. Dust particles larger than the sieve hole are intercepted, while those smaller than the sieve hole can penetrate. Therefore, the finer the sieve hole, the higher the dust interception efficiency. Different emission concentration requirements require different filter media with different hole diameters and processes. The process flow is as follows: smoke and dust generation point → smoke hood (suction port) → branch pipeline → main pipeline → dust collector → chimney exhaust.
Plasma cutting machine dust removal technology uses filter cartridges combined with filter media to improve the overall dust removal efficiency and reduce the footprint of the filter cartridge dust collector.
.1. Exquisite air intake design
Windshield design ensures that the energy of compressed air is evenly distributed to the filter cartridge; In the settling zone, it serves as a pre separation for large particles of dust and reduces wear on the filter cartridge.
2. Pulse dust cleaning system
Adopting pulse valves and dust cleaning systems can save the number of filter cartridges used and reduce operating costs for you.
3. Filter materials for the industry
The filter cartridge uses filter materials with a filtration accuracy of 0.03 μ m and no fine dust leakage.
4. Whole machine design
Using 4 thick steel plates, sprayed with high-temperature paint treatment, colors can be customized according to customer requirements, and the floor area is controlled at around 5 square meters.
.
