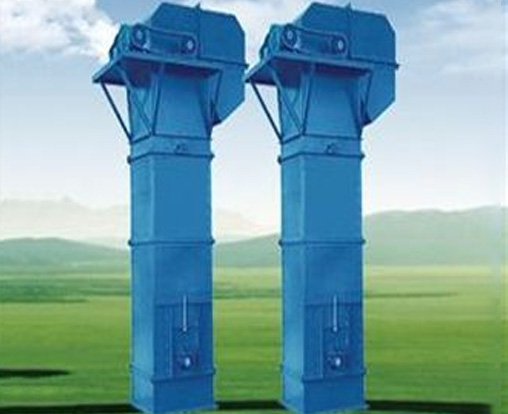

The bucket elevator produced by Hebei Feixiang Environmental Protection Equipment Co., Ltd. is suitable for lifting from low to high. The supplied materials are fed into the hopper through a vibration table and the machine automatically runs continuously to transport them upwards. The conveying speed can be adjusted according to the conveying capacity, and the lifting height can be selected as needed. The hopper is self-designed and manufactured, and the PP hopper makes this type of bucket elevator more widely used. All sizes are designed and manufactured according to actual needs. It is designed to be matched with vertical packaging machines and computer measuring machines, and is suitable for lifting and feeding products such as food, medicine, chemical industry products, screws, nuts, etc. The automatic stop and start of the machine can be controlled by the signal recognition of the packaging machine.
A bucket elevator is a continuous conveying machinery that uses a series of hoppers uniformly attached to an endless traction component to vertically lift materials. It is divided into three types: loop chain, plate chain, and belt.
The working principle of a bucket elevator is that the hopper scoops up the material from the storage below, and as the conveyor belt or chain lifts it to the top, it flips down after passing around the top wheel, and the bucket elevator tilts the material into the receiving trough. The transmission belt of a bucket elevator with belt drive is generally made of rubber belt, which is installed on the lower or upper transmission drum and the upper and lower reversing drums. A bucket elevator with chain drive is generally equipped with two parallel drive chains, with a pair of drive sprockets on the top or bottom and a pair of reversing sprockets on the bottom or top. Bucket elevators are generally enclosed to prevent dust from flying in the bucket elevator.
Bucket elevator: suitable for lifting from low to high, the supply material is fed into the hopper through the vibration table, and the machine automatically runs continuously to transport upwards.
